plastic floating dock
Product Name

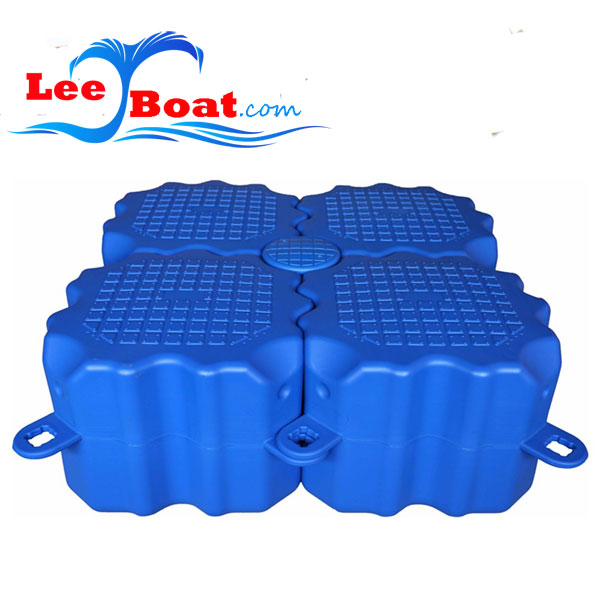

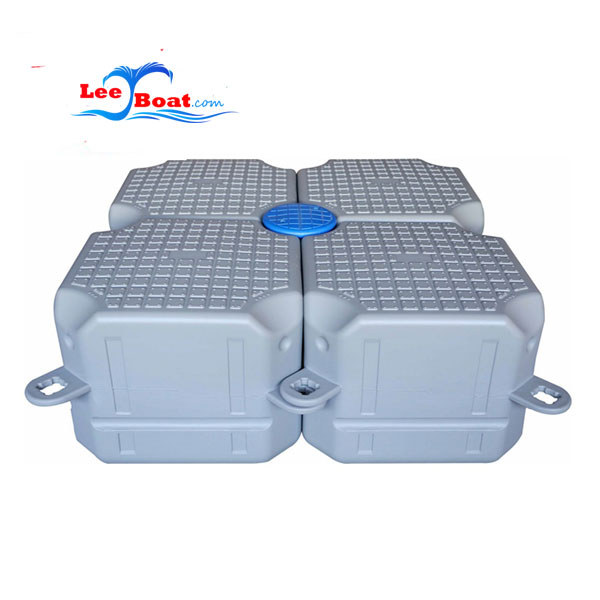

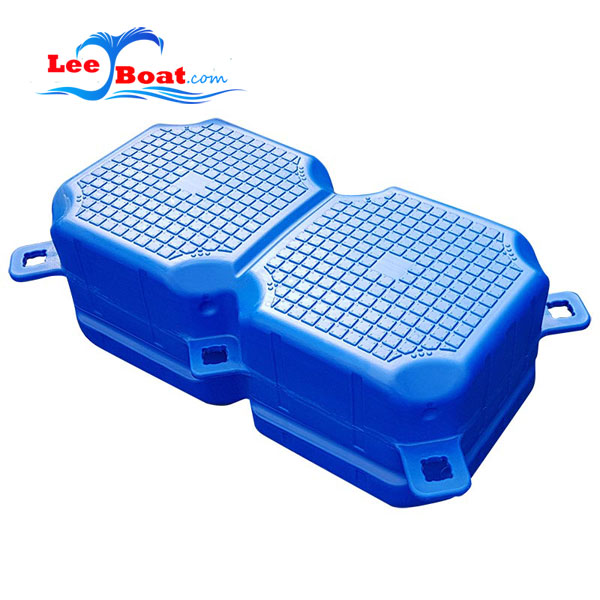

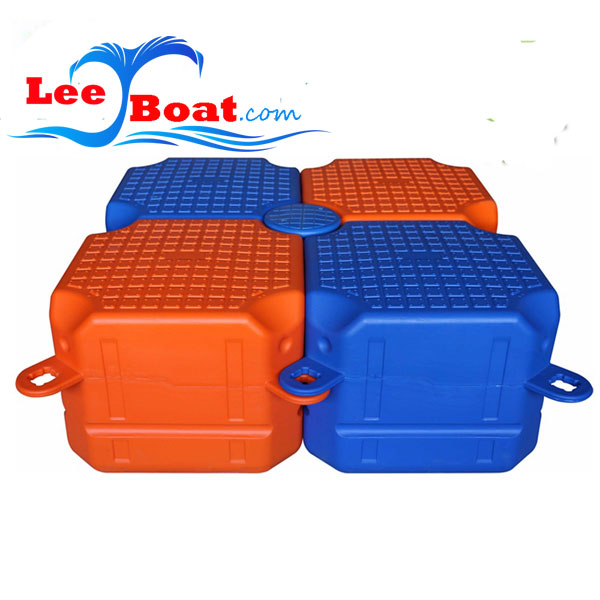

Hot Sale 500*500*400mm Blue jet ski floating dock pontoon cube for sale in China.
Material
HMWHDPE，with enhanced interlocking design, make the floating structures with HIGH Tensile strength and IZOD impact Strength, material is 100% recyclable and environmental friendly.
Color
Blue, Orange, Grey is available
Dimension
500mm*500mm*400mm(L*W*H)
Applications
Building
platform for sightseeing , pier, fishing, aquaculture, pontoon bridge,
swimming pool, protecting the jet ski from corrosion.
Working Temperature
-60ºC~80ºC
Buoyancy
325KG/Square Mater
Weight
7± 0.30kg/pc
|
Product Name
|
Hot Sale 500*500*400mm Blue jet ski floating dock pontoon cube for sale in China.
|
|
Material
|
HMWHDPE，with enhanced interlocking design, make the floating structures with HIGH Tensile strength and IZOD impact Strength, material is 100% recyclable and environmental friendly.
|
|
Color
|
Blue, Orange, Grey is available
|
|
Dimension
|
500mm*500mm*400mm(L*W*H)
|
|
Applications
|
Building
platform for sightseeing , pier, fishing, aquaculture, pontoon bridge, swimming pool, protecting the jet ski from corrosion. |
|
Working Temperature
|
-60ºC~80ºC
|
|
Buoyancy
|
325KG/Square Mater
|
|
Weight
|
7± 0.30kg/pc
|
Load Capacity:
Each one square meter is made up of four pontoons, top load is 325kgs.
Draft without load: 2.5-3cm;
Draft with load of 150kgs: 15-20cm(safe);
Draft with load of 300kgs:35-40cm(load limit).
Anti Wind Wave:
1.The wave on water surface between 2-class and 3-class belongs to safe applicable range.
2.The wave on water surface between 3-class and 6-class can be applicable; however, the safety protection must be reinforced.
3.The wave on water surface between 6-class and 9-class is the restricted applicable range (it is suggested that the shipping shall not be parked and the visitors shall not be in or out).
Attention:
to
avoid shaking of the dock, the area of internal lake’s dock is not less
than 30 square meter; the area of stage is not less than 100 square
meter.
Anchoring:
1.If
water is less than 3m in depth, steel piles are to be put in proper
place and then connected by wheels, which can prevent the floating dock
from moving laterally but can automatically rise and fall in line with
water level.
2.If water is over 3m in depth, anchoring can be used by sinking the anchorage block pulled by steel cables to the water bottom.
Cube Docks – Plastic Floating Docks
Our high density plastic
cubes offer you unlimited configurations in a maintenance-free
alternative to traditional wooden, metal, and concrete docks. Guaranteed
for twenty years, our environmentally friendly cubes have been installed around the world in residential, commercial,
marina, rowing, fishing and swimming platforms, as well as numerous
other recreational applications. When compared to other docks, ours
offer lightweight parts that are quick and easy to assemble with our
special connecting pin. Plus, we offer one of the most complete ranges
of accessories in the industry to further customize your dock in recreational or commercial use.
Why Choose us?
1.3
years warranty, that is within three years, if there is any damage
caused by the product in normal condition, we will replace the floats
for you. (Except for force majeure or human factors.)
2.We have complete accessories, if you place a big order, it can be free.
3.Large quantity stock for fast delivery.
4.Easy installing and dismanting.
Why Choose us?
1.3
years warranty, that is within three years, if there is any damage
caused by the product in normal condition, we will replace the floats
for you. (Except for force majeure or human factors.)
2.We have complete accessories, if you place a big order, it can be free.
3.Large quantity stock for fast delivery.
4.Easy installing and dismanting.
