China Plastic Floating Dock Wholesale, Cheap Price and Good Quality. Walk On Water!
Material:It is made of high molecular weight polyethylene, which can float on water by blow molding process. It is a revolutionary product, which is the best product to solve the problem of land and water connection at present.
Description of vertical and horizontal bearing capacity of pontoon: each one square meter is made up of four pontoons, top load is 350kg.
Draft without load: 2.5-3cm;
Draft with load of 150kgs: 15-20cm(safe);
Draft with load of 300kgs:35-40cm(load limit)
Diagonal tensile test:
Each pontoon can withstand more than 2300 kg of tension and can not deform or break.
Anti Wind Wave:
1.The wave on water surface between 2-class and 3-class belongs to safe applicable range.
2.The wave on water surface between 3-class and 6-class can be applicable; however,the safety protection must be reinforced.
3.The wave on water surface between 6-class and 9-class is the restricted applicable range (it is suggested that the shipping shall not be parked and the visitors shall not be in or out).
Product Description
Wholesale high quality plastic floating dock
| Commodity | Specification | Buoyancy | ||
| Length | Width | Height | ||

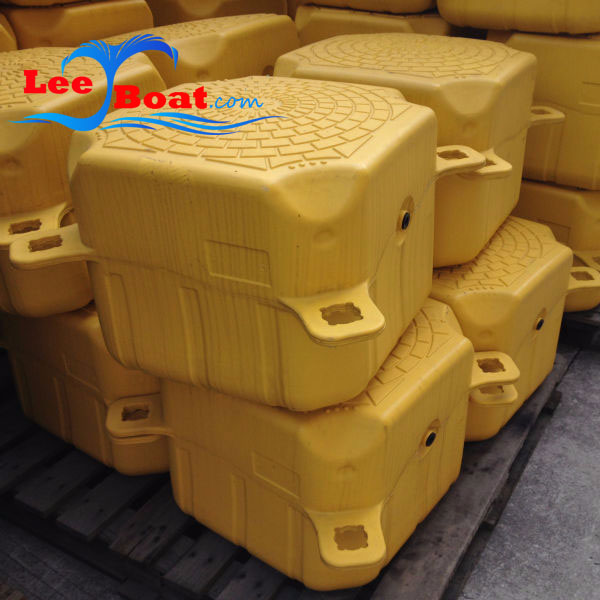

| Floating Dock | 500mm | 500mm | 400mm | 350kg |
1.Material: HMWHDPE
2.Working Temperature: -60ºC~80ºC
3.Weight: 7.00kg/pc
4.Buoyancy: 350KG
5.Color: blue, orange are available
6.Function:
(1) Used to protect the jet ski from corrosion or algae.

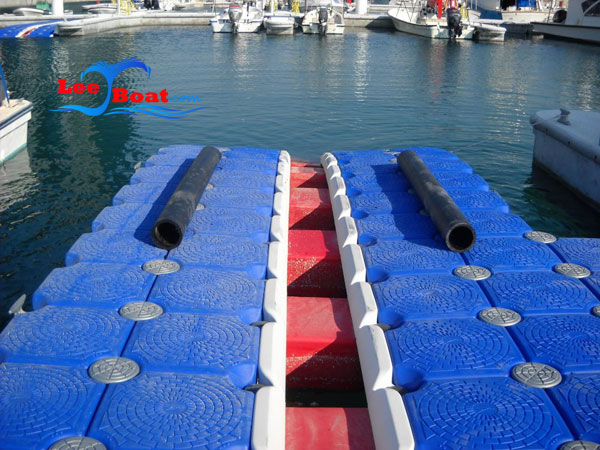

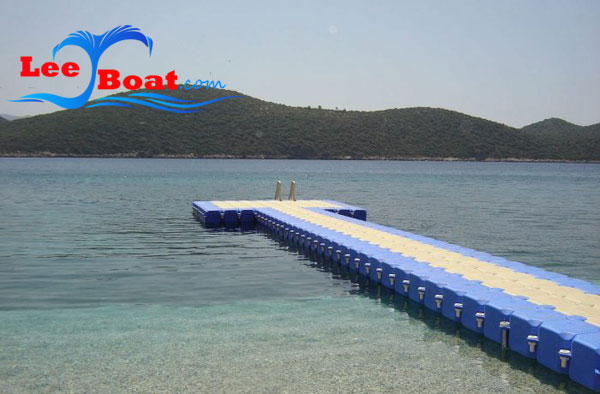

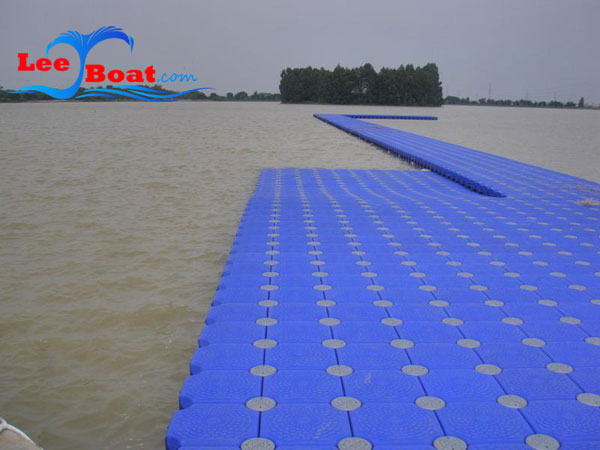

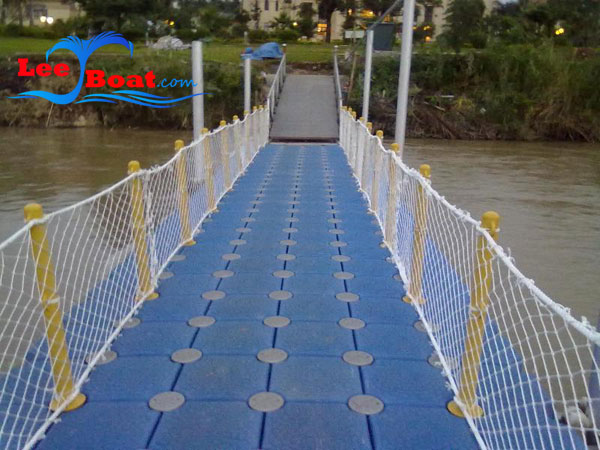

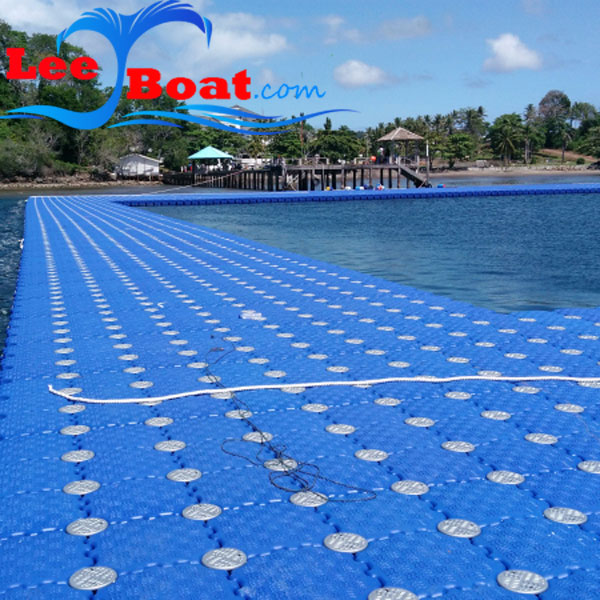

(2) Be used to build floating dock, pier, fishing platform, fish farm, walk way, pontoon bridge, swimming pool.
7.Imported PE with UV inhibitor,durable,environmentally friendly
Installation
Cube Docks – Plastic Floating Docks
Our high density plastic
cubes offer you unlimited configurations in a maintenance-free
alternative to traditional wooden, metal, and concrete docks. Guaranteed
for twenty years, our environmentally friendly cubes have been installed around the world in residential, commercial,
marina, rowing, fishing and swimming platforms, as well as numerous
other recreational applications. When compared to other docks, ours
offer lightweight parts that are quick and easy to assemble with our
special connecting pin. Plus, we offer one of the most complete ranges
of accessories in the industry to further customize your dock in recreational or commercial use.
Float characteristics:
The pontoon to 500mm / min test speed to do diagonal tensile test, up to 1600kgf above the tensile strength.
1. Safe
and secure: engineering pontoon surface anti-skid pattern design, safe
and secure; and the bucket four corners for the arc obtuse angle design,
both safe and stable.
2. High bearing capacity: per square meter can carry 360kg weight.
3. Multi-purpose: can be widely used in various fields.
4. Affordable:
maintenance and repair costs less. In addition to natural force majeure
and artificial improper use, almost no need to spend maintenance,
maintenance costs.
5. Easy
to dismantle: quick and easy installation and dismantling; assembly
simple, fast, flexible, diverse shapes, the overall use of modular
structure,
6. Mobility
variability: can be changed according to need, combined into any size
and any structure of the facilities; with a variety of landscape needs,
the rapid replacement of the platform shape. In the case of
7. The appearance of bright colors, beautiful shape, for the scenic icing on the cake, enhance the publicity effect.
8. The
cost is reasonable, the economy, from a long-term point of view, can
save a large number of maintenance, maintenance, replacement,
maintenance costs and time.

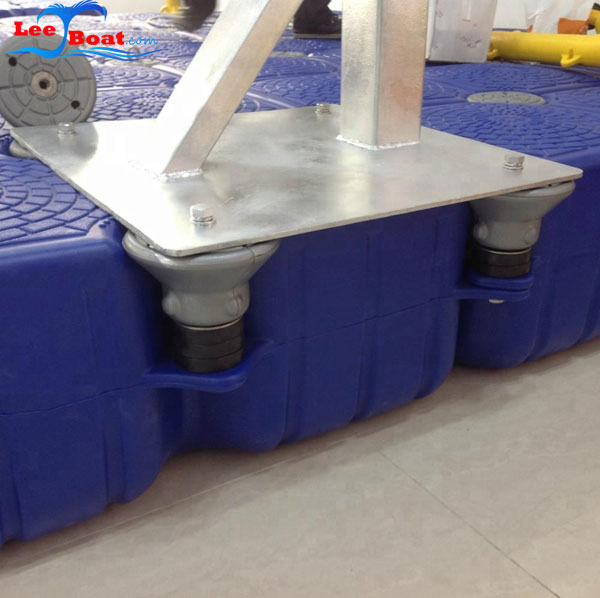

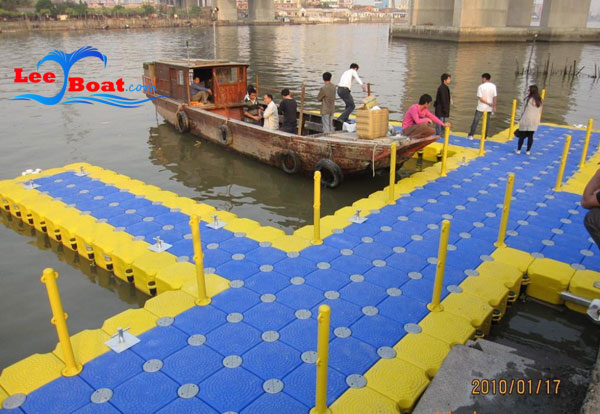

9. Equipped
with complete equipment, a series of bolt, cable piles, anti-collision
ball, fence, landing side of the bridge and pedal, etc,the
dock can be parked in various sizes of vessels; the other because of
floating buoyancy characteristics of the floating platform, Landing and
automatic lift, the passengers up and down the safety of the vessel,
greatly increased comfort.
10. Material:
Imported tough high molecular weight polyethylene resin (HMWHDPE), add
the corresponding anti-static, antioxidants, anti-ultraviolet agent
The
material is characterized by: anti-corrosion, anti-freeze,
anti-oxidation, anti-ultraviolet line of the strengthening material,
from seawater, chemicals, pharmaceuticals, oil and water erosion;
11. The product life is more than 15 years.
